Industrial UAVKT25

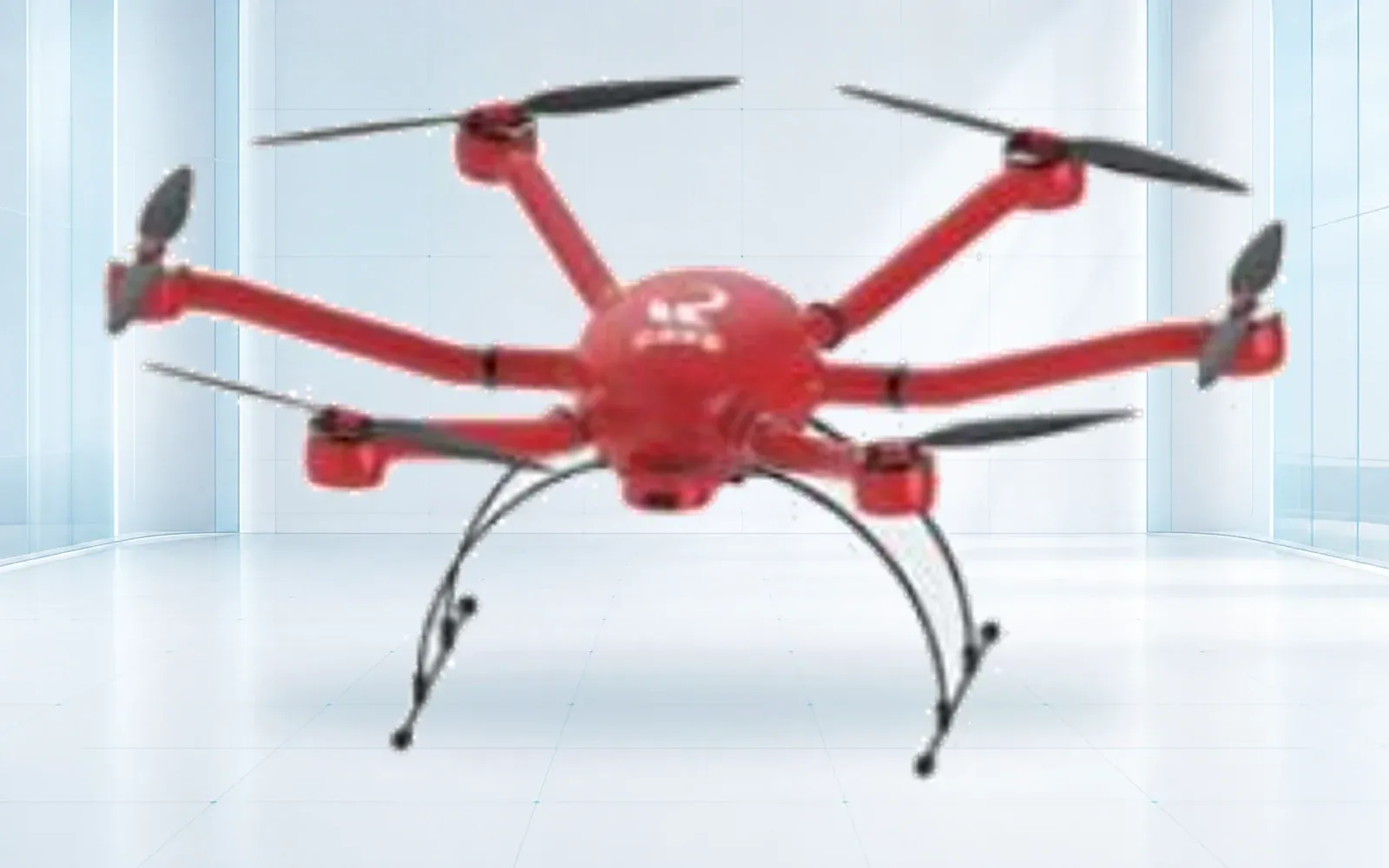

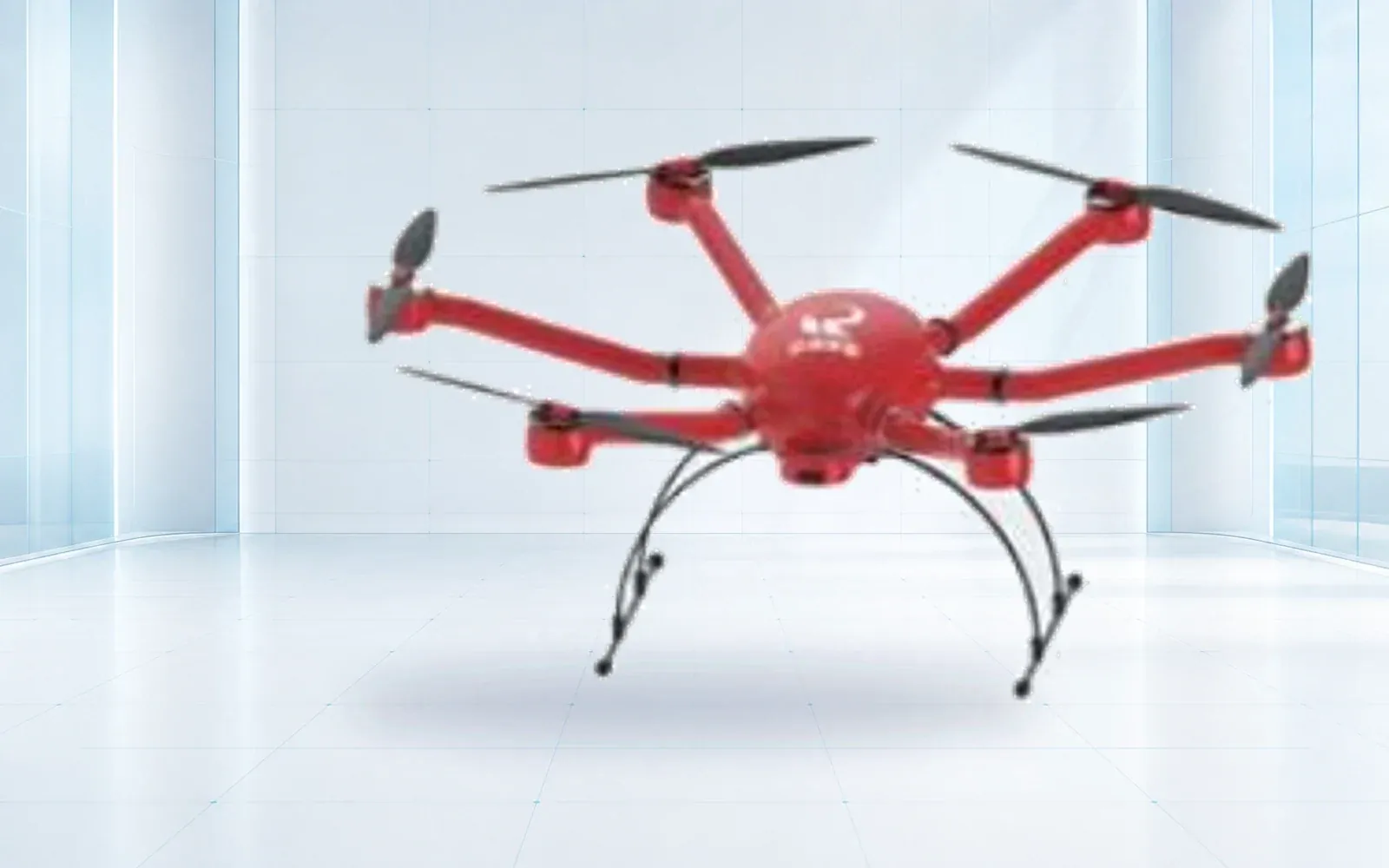

KT25 Industrial Lift UAV
A long-endurance industrial multirotor for measured cargo and field missions.
The KT25 is an industrial multirotor for controlled field operations that favor endurance over maximum payload. Its reference system combines multi-constellation positioning, RTK orientation and automated return protections.
- Maximum payload
- 12 kg
- Maximum endurance
- 75 min
- Control range
- 20 km
- Service ceiling
- 5,000 m
System capabilities
What this configuration is designed to do
- 12 kg maximum payload reference
- RTK dual-antenna positioning
- Autonomous flight mode
- Low-battery and link-loss return
Application fit
Typical mission applications
- 01Remote cargo delivery
- 02Inspection payload transport
- 03Emergency logistics
- 04Field operations
Technical data
Technical specifications
Core performance and interface data for preliminary system selection.
Confirm a project configuration →| Maximum payload | 12 kg |
|---|---|
| Maximum endurance | 75 min |
| Control range | 20 km |
| Service ceiling | 5,000 m |
| Cruise speed | 54 km/h |
Engineering path
From shortlist to a defined system
A clear sequence keeps product selection, integration and acceptance tied to the mission.
- 01
Mission review
Confirm the environment, users, required outcome and constraints.
- 02
System configuration
Resolve payload, interfaces, accessories and performance targets.
- 03
Acceptance plan
Agree tests, documentation, training, delivery and handover criteria.
Selection context
Related engineering guidance
Use these guides to test the mission assumptions behind a product shortlist.
Operational Guide
Drone Endurance Planning: Turn a Flight-Time Claim Into a Mission Budget
Plan usable drone endurance with a segment energy budget for payload, wind, altitude, reserves, diversion, battery condition, and representative flight tests.
Engineering Guide
Drone Payload Integration: Freeze Mass, Power, Data, and Acceptance
Integrate drone payloads with an interface matrix covering mass, center of gravity, mounting, power, thermal control, data, failure behavior, and flight acceptance.
Product FAQ
Can KT25 be customized?
Integration can be reviewed around the mission, selected options and interfaces. Typical engineering inputs include 12 kg maximum payload reference, rtk dual-antenna positioning, autonomous flight mode, destination-country requirements and the intended operating environment.
What information is needed for a quotation?
Provide the destination country, operating scenario, required quantity, target performance, payload or integration requirements, delivery timing and any mandatory standards.
