Debris-Flow Monitoring Systems: Detection Geometry, Warning Logic, and Road Closure

Define the Hazard Reach and Protective Action

Map the source areas, flow paths, tributaries, constrictions, fan, road crossings, facilities, communities, escape routes, and downstream consequences. Define whether the system protects a road, work site, community, reservoir, railway, or other asset. The protective action determines the required warning time, confidence, communication path, and authority.

Separate three questions: are initiation conditions developing, has material begun to move, and has a flow passed a location? Rainfall and soil or slope conditions can support the first. Ground vibration, in-channel radar, stage, acoustic, geophone, wire or barrier, camera, or other event sensors can support the latter two. Their usefulness depends on terrain, flow behavior, weather, debris, and placement.

The USGS debris-flow monitoring and warning review distinguishes sensors for initiation conditions from sensors that measure flow dynamics. Preserve that separation in requirements and the user interface so an elevated rainfall condition is not displayed as a confirmed channel event.

Monitoring layer	Typical observation	Decision it may support	Critical limitation
Initiation potential	Rainfall, soil or slope state, forecast or threshold	Watch, staffing, readiness, increased observation	Does not confirm a moving flow
Channel event detection	Motion, vibration, range, stage, acoustic or visual change	Confirm passage at a sensor section	Detection occurs only after flow reaches that section
Downstream verification	Second station, camera, stage or impact evidence	Direction, persistence, escalation	May reduce available action time
System health	Heartbeat, power, communications, signal quality	Trust, degraded operation, maintenance	Healthy electronics do not prove hazard absence

Write the action table with the responsible agency. Include readiness, field warning, road gate or signal operation where authorized, dispatch, public message, emergency coordination, and reopening. A sensor supplier can implement outputs, but should not create public-safety authority.

Separate Initiation Indicators From Flow Confirmation

Rainfall thresholds are location- and condition-specific. Burn severity, time since fire, storm intensity and duration, soil, slope, channel storage, antecedent moisture, and changing vegetation can affect the relationship. The USGS FlowAlert project describes rain gauges within four kilometers of burn perimeters and rainfall thresholds as part of its warning approach. That example is evidence for calibrated networks—not a universal four-kilometer design rule.

Initiation monitoring can extend readiness time but may generate watches without a flow. Channel detection provides stronger event evidence but consumes travel time between source and sensor. Combining the two can create staged decisions: prepare on initiation potential, confirm or escalate on channel evidence, and issue downstream actions according to consequence and authority.

Choose independent sensing where false or missed events have high consequences. Two identical devices sharing the same pole, power supply, radio path, and failure mechanism are not fully redundant. Independence may come from different locations, physical modalities, power paths, or communications networks.

Avoid a generic AI score that hides the evidence. If a model combines rain, radar, vibration, and camera data, preserve the underlying observations, version, thresholds, missing-data handling, and reason for each state change. Operators need to distinguish an actual multi-sensor event from a model output dominated by one failing channel.

Place Sensors Around Terrain and Warning Time

Work backward from the protective action. Estimate detection-to-decision time, message and acknowledgment time, field-device activation, traffic clearance, and a safety allowance. The detection cross-section must be far enough upstream to preserve that time under credible flow speeds, yet close and geometrically suitable enough to observe the event reliably.

Survey channel width, bends, gradient, banks, vegetation, boulders, bridges, culverts, sediment, possible avulsion, and line of sight. A radar aimed at a stable wall or moving vegetation may produce a strong signal unrelated to the channel. A low sensor may be destroyed by the event; a high sensor may lose sensitivity to the target. Installation design must consider both evidence and survivability.

The HAWK-R0D debris flow monitoring radar is a reference sensor for an in-channel layer. The HAWK-R5 slope monitoring radar is a reference for broader ground-movement observation where geometry and validated performance fit. Neither device alone defines an early-warning system; site layout, health monitoring, logic, authority, and response remain necessary.

Document coordinates, elevation, orientation, beam or observation area, channel section, blind zones, expected event signature, nuisance sources, service access, and post-event survivability. Reassess after erosion, deposition, vegetation growth, construction, wildfire, or channel migration.

Design Communications, Power, and Health Supervision

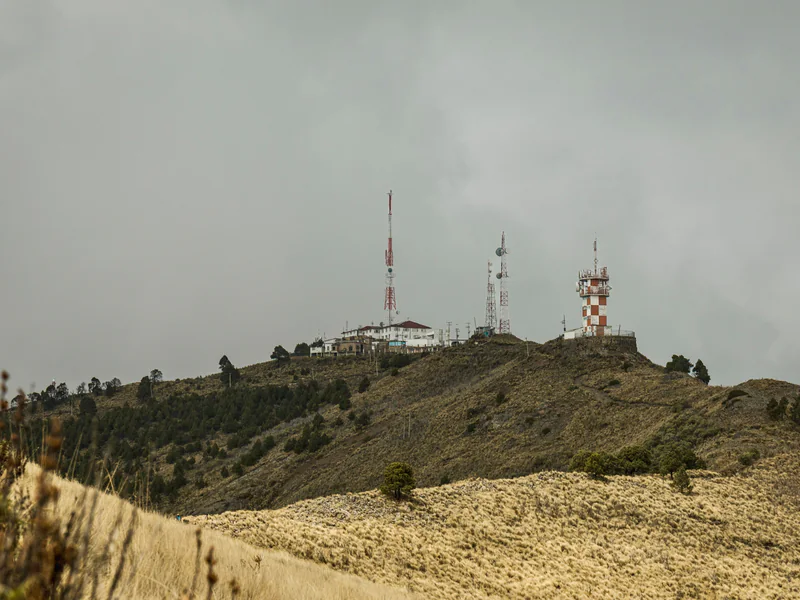

Hazard sites often lack utility power and stable terrestrial communications. Calculate the energy budget for sensing, heating or cooling, computing, normal telemetry, event-rate transmission, local warning devices, and seasonal solar conditions. Define minimum backup duration and load-shedding priorities. A battery percentage without load and temperature context is not a power assurance.

Use local buffering so network loss does not erase event evidence. If protective action depends on remote control, define alternate paths, local autonomous behavior where authorized, and the safe state of gates, signs, or beacons. Supervisory messages should report data freshness, sensor quality, enclosure or tamper state where relevant, power, storage, clock, and communications.

Create distinct states for healthy and quiet, watch, confirmed or probable event, degraded, unavailable, maintenance, and post-event recovery. A failed channel should never be rendered as a zero measurement. If the system cannot support the approved protection while degraded, the response plan should define compensating patrols, closure, or other measures.

Time synchronization matters across upstream and downstream stations. Preserve clock source, uncertainty, communication delay, trigger time, receipt time, operator acknowledgment, field-output activation, and any public-message time. Those records are essential for measuring warning performance after a test or event.

Build Warning States and Road-Closure Authority

Use a state machine with explicit entry, persistence, escalation, exit, and reset conditions. A watch may arise from forecast or rainfall. A warning may require channel evidence or an owner-approved multi-sensor combination. An alarm may trigger a road device, operations center action, emergency notification, or evacuation procedure according to the agency plan.

Define manual and automated authority separately. An automatic sign or barrier can reduce delay but introduces its own failure and traffic risks. Specify interlocks, local confirmation, remote status, manual override, fail state, conflicting indication detection, and how road users already inside the protected segment are handled.

The National Weather Service’s debris-flow information illustrates the public-warning context, while the USGS landslide monitoring page cautions that provisional data should not be the sole basis for public-safety decisions. Translate that caution into qualified review, multiple evidence layers, and an approved agency decision process.

Messages should say what is known: threshold exceeded, possible initiation conditions, channel event detected at station A, confirmation pending, sensor network degraded, road device active, or all-clear authorized. Avoid presenting “debris flow detected” when the actual input was only heavy rainfall.

Preserve Event Evidence and Reopen Safely

Retain pre-trigger, trigger, and post-trigger observations from every sensor, original images or video, processing outputs, device health, time records, configuration version, warnings, deliveries, acknowledgments, operator actions, and field-device status. Protect the record from later model or threshold changes.

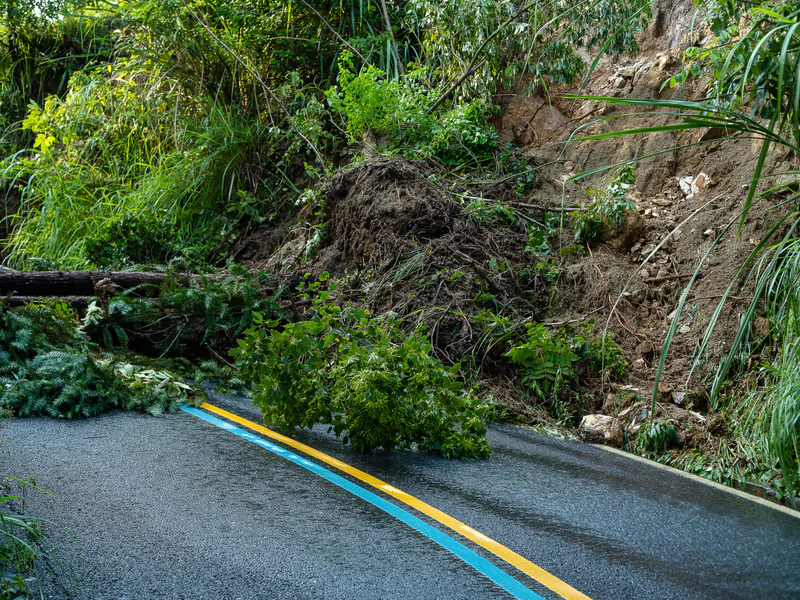

After an event, expect sensor damage, changed geometry, deposition, blocked access, and false normal readings. Recovery is not simply clearing an alarm. The responsible agency should inspect the route or channel, verify sensor geometry and health, assess residual hazard, reset field devices, and authorize reopening under its plan.

Conduct an after-action review for true and false events. Compare expected and observed arrival, detection, communication, decision, and action times. Classify missed triggers, nuisance triggers, data gaps, and operator ambiguity. Update thresholds or models only through controlled validation; do not tune them to one event and assume wider validity.

The landslide early-warning system design guide covers slower slope-deformation trends and multi-sensor escalation. Use it for the neighboring hazard class while keeping rapid channel-event logic in this article. The disaster and emergency response solution provides the wider response-integration context.

Test the Full Chain Before the Hazard Season

Commission survey, sensor alignment, target response, power budget, backup, communications, local buffering, time synchronization, health states, warning logic, operations-center display, messages, field devices, acknowledgment, and record retention. Use safe simulated or controlled targets appropriate to each sensing modality.

Exercise rainfall-watch input, channel-sensor trigger, upstream-only and downstream-only triggers, contradictory sensors, nuisance motion, heavy rain without flow, network loss, primary-power loss, clock error, stuck field device, missing acknowledgment, damaged station, and post-event reset. Include the agencies and operators who actually own the action.

Measure detection probability for defined targets, nuisance rate, coverage, warning time, end-to-end latency, health-state accuracy, message delivery, operator interpretation, field-device response, data completeness, and recovery time. Acceptance should document remaining blind zones and the compensating controls.
